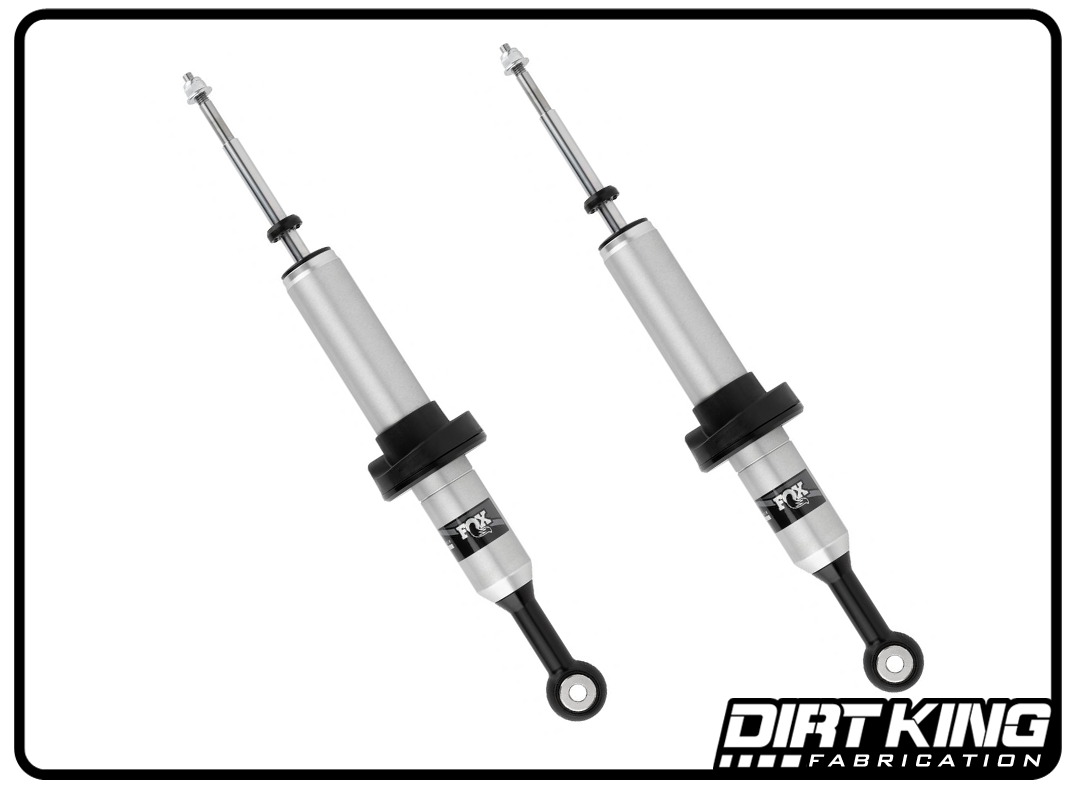

Toyota Tacoma 16-23 Tacoma Fox 2.0 Smooth Body Shocks | IFP | Front - Clearance
Sale price
$441.90
Regular price
$519.90
Shipping calculated at checkout.
Details
The 2.0” Fox Performance Series smooth body IFP shocks are loaded with advanced technology and a long list of features that set them apart. The precision metal impact aluminum body increases cooling capacity and will never rust. The Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the 2.0 Performance Series IFP shocks with a predicable ride quality capable of handling the roughest road conditions.
Specifications
- Allows up to 1” of Lift
- Internal IFP mono-tube reservoir design
- Precision bored 2.0” diameter shock body
- Allows for up to 15% increase in front wheel travel
- Completely bolt in OEM replacement application
What's Included
- 2.0” Fox Performance Smooth Body
- Teflon lined spherical bearings w/misalignments
- All necessary mounting hardware
- Installation instructions
Features
| Body | 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
|---|---|
| Body Plating | Clear-anodized for a durable finish |
| Internal Reservoir | Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8" hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bearing |
Large diameter, heavy-duty spherical |
| Mounting | Direct replacement for stock and aftermarket lifts kits |
Compatibility
2016-2023 Toyota Tacoma 2WD / 4WD
