Morimoto BigBanger LED Pods: HXB Spot Beam
$610.00
Shipping calculated at checkout.
Details
Introducing the Morimoto BigBanger LED Pod Lights, a game-changer in automotive lighting. These lights redefine off-road illumination with their innovative HXB Spot Beam pattern, delivering unmatched performance for nighttime adventures. The HXB Spot Beam boasts incredible reach, penetrating up to 800 meters into the darkness, producing over half a million Candela. But that's not all -- these pods are built to impress in every aspect. Designed, engineered, and torture-tested in the USA, they offer exceptional durability. The versatile mounting options make installation a breeze, and their dual-intensity Amber Back Light ensures safety on the road at night. With options for white or yellow output, as well as spot or combo beam patterns, you can customize your lighting to suit your needs. The Morimoto BigBanger LED Pod Lights set a new standard for performance, reliability, and style, making them the ultimate choice for off-road enthusiasts. Illuminate your path and conquer the darkness with confidence!
- HXB Spot Beam: Powerful, reaching 800 meters for ultimate visibility.
- Durable: USA-designed and torture-tested for long-lasting performance.
- Easy Install: Versatile mounting options and universal brackets.
- Customizable: Choose white/yellow output and spot/combo beams.
- Safety First: Amber Back Light reduces glare for night driving.
LED Pod : 1x Morimoto BigBanger HXB Spot Beam (Sold Individually)
Bracket : 1x Surface Mount Bracket
Hardware : 2x M10x1.5 SS Carriage Bolts, 2x M10 SS Washers, 2x M10 SS Lock Nuts, 8x M6x1.0 SS Screws
Optional Wiring : 1x Morimoto Switched Relay Harness or Pigtail
TECHNICAL SPECIFICATIONS
-
Note : These specifications are per pod / each!
-
Intensity (White) : 580,000 Cd (5,800 lux @ 10m)
-
Intensity (Yellow) : 400,000 Cd (4,000 lux @ 10m)
-
Input Voltage : 9-18V DC
-
Current (@ 13.5V DC) : 5.55A (Stabilized), 8.15A (Startup), 2.2A (Backlight), 600mA (Dim Backlight)
-
Peak Luminosity (raw) : 7,000lm
-

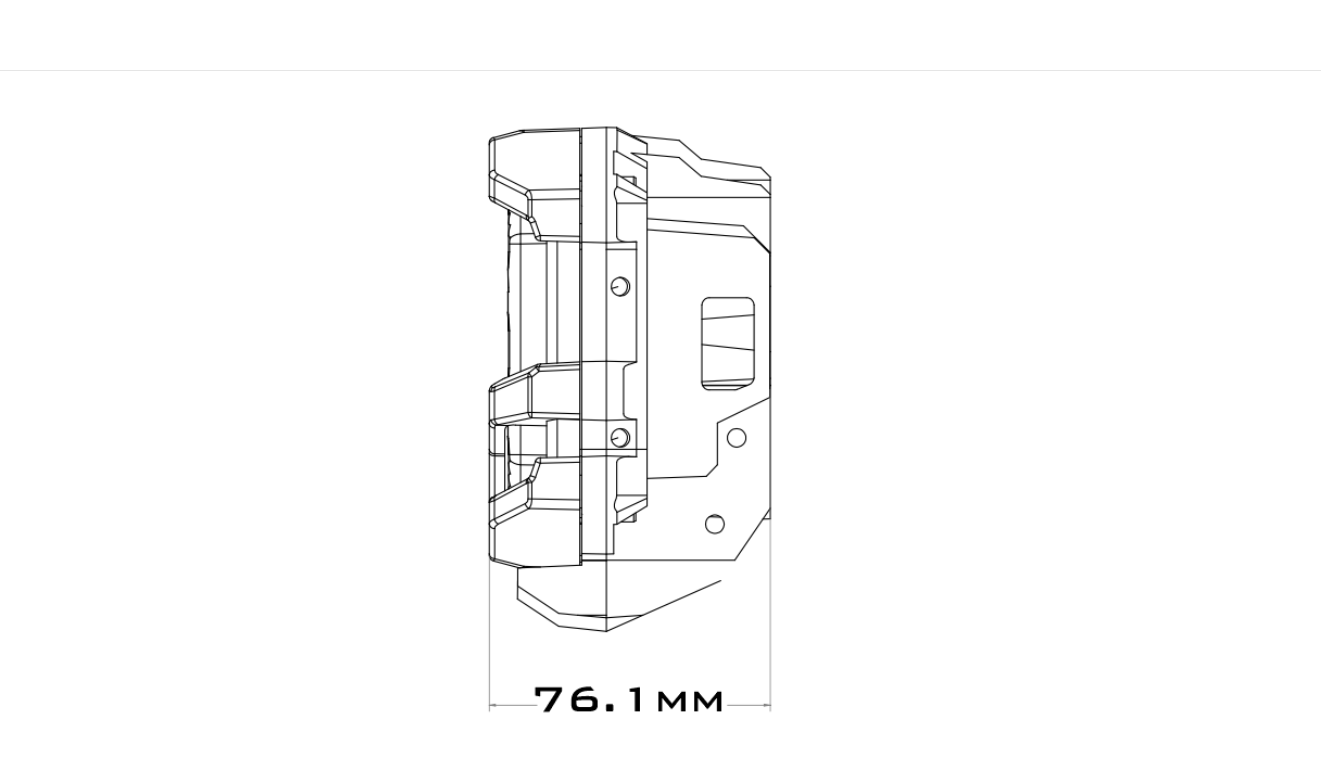

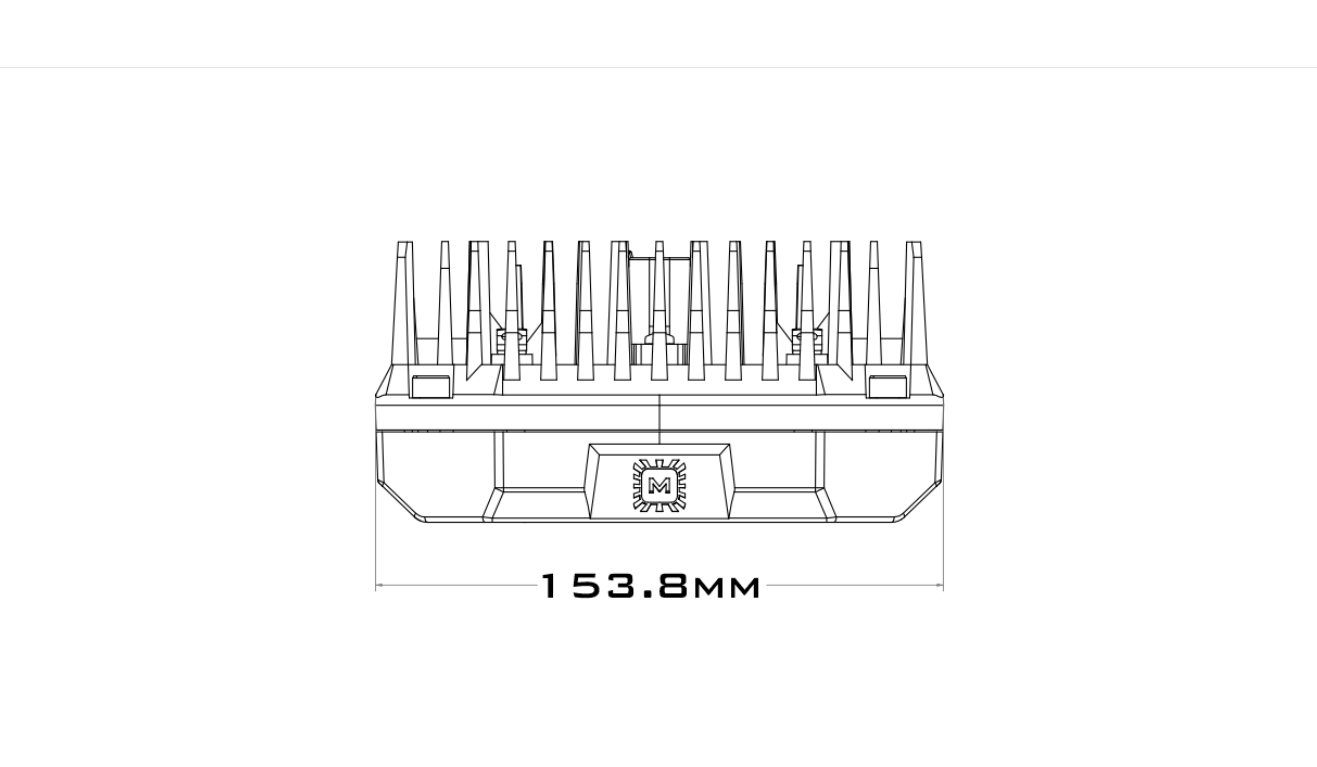

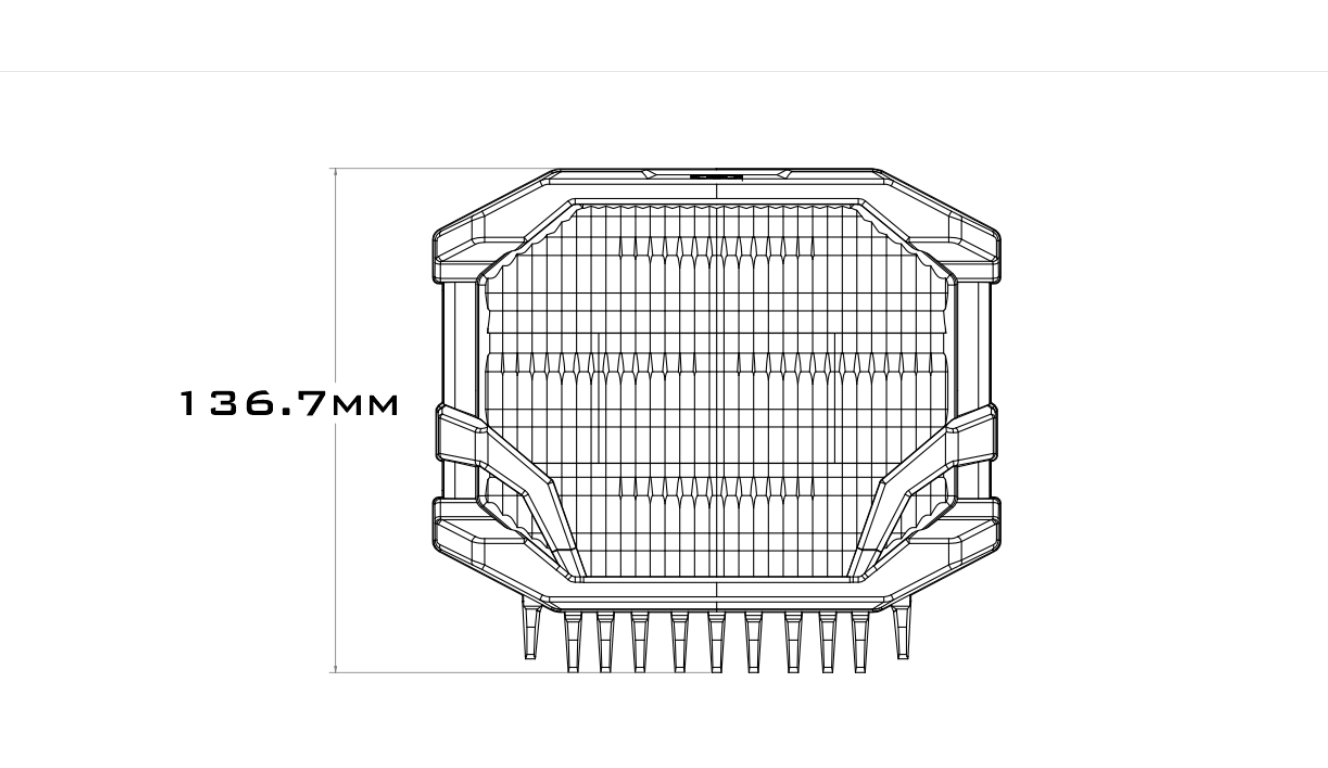

Dimensions : 154mm W, 136.7mm H (153.5mm w/ Bracket), 76.1mm D, 3lb 11oz / 1.7kg (w/ all hardware)
-
Color : 2700K (Yellow) or 5700K (White)
-
Light Source : 7x Osram HX Boost (Output), 12x CREE XP-E2 PC Amber (Backlight)
-
Input : Integrated Deutsch DT 4-Pin
-
Material : Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
