Introducing the FIRST Elite Series Headlamps! With truly modern technology, Elite Series redefines what's possible for aftermarket headlights.

These headlights are fully plug-and-play for all JL Wranglers & JT Gladiators. Unlike other "JL/JT" lamps that are just 7-inch units with an adapter, these are true 9-inch replacements. They are compatible with all trim levels, and both factory halogen and LED setups.

Two different versions of Elite Series headlights are offered:
Elite and Elite MAX.

Both versions feature the same powerful projector, delivering 48,000 candela, up to 30% more than the factory LED projectors. They both include a brighter DRL halowith patent-pending selectable colors, switchback turn signal, and welcome sequence. The Elite Max takes it a step further, with extra DRL bar accents, an integrated off-road Trail Light, show mode, and SAE-compliant turn signaloutput. Jam-packed with features, these headlights are like nothing else on the market today.



  • Bi-LED projector for maximum output and intensity
  • Selectable color daytime running light
  • Modern welcome sequence
  • Integrated amber turn signal
  • Optional show mode and off-road lighting
  • Engineered and Assembled in USA - 8 Year Warranty

Introducing Elite Series LED Headlights for the 2020+ Jeep Gladiator from Diode Dynamics! These headlights were designed for maximum performance, and they are the only 9-inch headlights that are 100% engineered and assembled in the USA. With the latest technology and features, they redefine what’s possible for aftermarket headlights!

With OEM-grade quality, the Elite Series headlights will add a switchback turn signal, welcome sequence, a brighter DRL halo with selectable color, and optional offroad lighting and show mode. Plus, you’ll get unmatched performance and output, backed by an 8-year warranty.

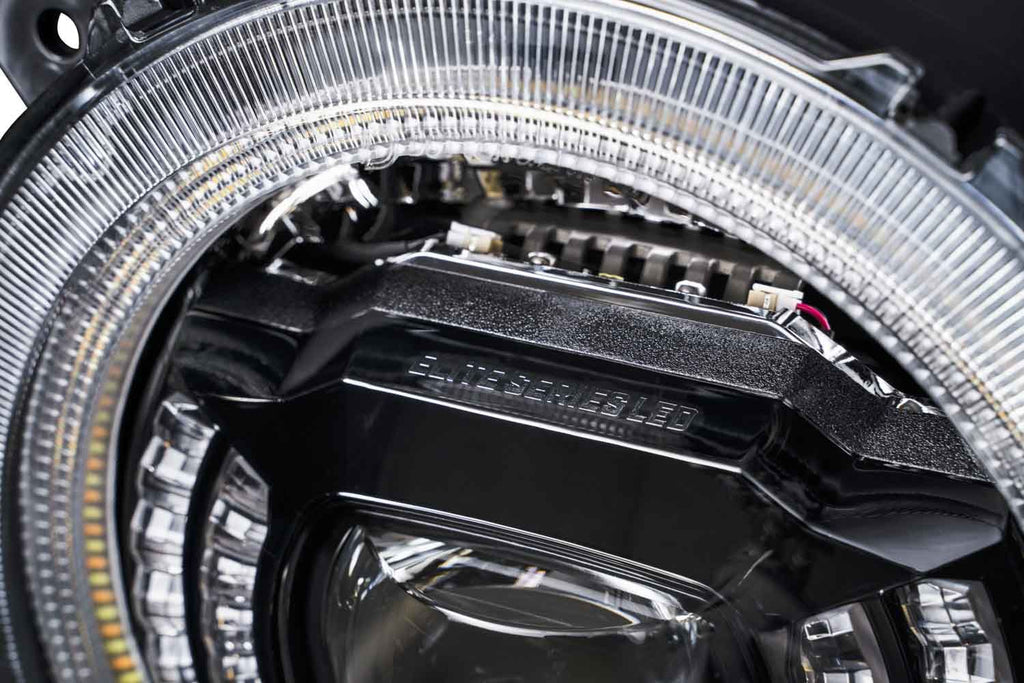

Maximum Light Output. First and foremost, the Elite Series LED Headlights provide full LED illumination for both low beam and high beam function, with the modern, rectangular bi-LED projector. This unit provides higher intensity than both the OEM halogen and LED options, shining light far down the road ahead. The beam pattern has a sharp cutoff, with excellent center intensity and strong width, for a fantastic nighttime driving experience. The same projector is installed on both the Elite and Elite Max models.

Welcome Sequence. Anytime you hit the unlock button, your Elite Series headlights will show off their capabilities with a gradual illumination of the LEDs. This provides an unmistakable indicator of the modern technology packed inside. Note that this feature is programmable, and can be easily disabled if desired.

Selectable DRL - On the Fly. These headlights feature a selectable DRL, to customize the look of your Jeep. With up to four distinct DRL modes, you can choose white and amber colors, and enable or disable the extra DRL bars (if equipped). The best part? You don’t even have to pop the hood. Our patent-pending technology allows you to program your headlights from inside the vehicle, using existing controls. No extra switches, wires, or controllers required!

Switchback Turn Signal. Stock headlights don’t have a turn signal. Where’s the fun in that? The Elite Series headlights will flash amber any time the turn signal is activated. When you’re done making your move, they’ll switch back to the white parking light, or your selected DRL color. With the plug-and-play harness included, no wire splices are needed to add this function. Thinking about a fender chop? The Elite Max model also provides enough turn signal output to be SAE compliant, replacing your factory turn signal completely, unlike the LED strips found in most chop kits. If you’re serious about off-roading but want to stay safe, the Elite Max is the perfect solution.

Not just on road! First in its class, the Elite Max model includes a patent-pending Trail Light off-road lighting feature. With the same emitters found in our popular Stage Series off-road products, the top and bottom reflectors shine extra light in a wide beam, to illuminate the trail ahead. The high-power LEDs stay cool, thanks to custom-designed heatsinks. An extra switch is included to activate these Trail Lights, or they can be connected to a factory auxiliary switch, if equipped.

Show Mode. As if the other features weren’t enough, the Elite Max model comes with a patent-pending Show Mode. Whether you’re parked at a show or just want to be seen, you can activate the show mode any time you’re stopped. Choose between four functions: Gradual, White Strobe, Amber Strobe, or Amber/White Strobe. Of course, there’s no need for extra controllers - simply toggle your off-road switch to easily start show mode from your cabin.

Plug-and-Play Installation. These headlights were designed to be a direct replacement for both halogen and LED-equipped Jeeps, in all trim levels. Simply remove your factory headlight assembly and ours will bolt right in its place. A plug-and-play wire harness is included to hook them up to your factory connector, and also add the turn signal connection. No splicing required! With built-in adjusters, the lamps can be aimed using the provided adjustment tool. For Sport owners, a simple add-a-fuse is included to provide the DRL function. Elite Max customers will also receive an extra braided wiring harness, for the off-road and show mode feature! This harness includes a toggle switch, or you can connect it to a factory auxiliary switch, if equipped.

Assembled with Quality - in the USA. Most OEM headlights are made in the US, but nearly all aftermarket headlights are assembled overseas. There’s a reason for that - quality control counts, and the OEMs know it. We’re working to break that mold, and deliver headlights with the same quality you’ll find from the factory. Elite Series headlights are proudly assembled in the USA using OEM-grade materials, including a cast aluminum driver and heatsinks, UV-coated outer lens, aluminum-core circuit boards, and automotive-grade LED emitters. After being assembled by our team in St. Louis, Missouri, they are robotically sealed and individually pressure-tested for long-lasting protection against moisture, before being packaged in custom foam for safe transportation. No expense has been spared, from materials to assembly, right here in America.

What's Included

In the Box:
Two (2) Jeep Elite or Elite Max Headlamps
Two (2) Adapter Harnesses
One (1) DRL Auxiliary Tap Harness
One (1) Adjuster Tool
Quantity: Pair (Left and Right Side)
Warranty: 8 year warranty with manufacturer.


NOTE: Sport models will use the included add-a-fuse to provide DRL power.

Application: Headlamp
Make: Jeep
Model: Gladiator/JL Wrangler
Years: 2020, 2021, 2022


NOTE: Data below is for the Elite Max headlamps. Elite headlamp data is coming soon.

Measured Lumens: 917 (Low Beam), 1398 (High Beam)
Intensity (cd): 54,500 (Low Beam), 76,000 (High Beam), 9,100 (Offroad)
Color Temp (CCT): 6000K
Power (watts): 51.01 (High Beam)
Operating Voltage: 9-16V
Current (amps @ 12.8V): 3.986 (High Beam)
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, 3030 Bicolor
Connector(s): OEM-Size Plug and Play
Driver Features: Internal, Linear Regulated, Constant Current
Materials: UV Coated Polycarbonate Lens, Aluminum Heatsink, Clear Anodized Aluminum
Cooling: Passive, heatsink
Intrusion Ratings: IP67 Weatherproof
Unit Weight (lb): 4.8
